The tata magic battery is the mini‑van’s silent workhorse. It powers cold morning starts, keeps fare meters accurate, and lets you run a rooftop fan on sweltering summer routes. When a driver chooses the right tata magic battery, downtime drops, profits rise, and passengers stay happy.
Factory specifications and compatibility
Tata’s passenger carrier ships with a 12 V, 35 Ah flooded lead‑acid unit mounted under the driver’s seat. Newer Magic Express Bi‑Fuel models stick to the same 35 Ah rating for weight balance . Older diesel trims accept DIN‑type 45 Ah packs if you trim the plastic shroud, but stay within 227 mm height to clear the seat frame .
Battery codes decoded
35B20R—35 Ah, B‑group, 20 cm length, right‑side positive.
ML38B20L—Exide Mileage variant, 38 Ah, left‑side positive.
EPIQ35L—Exide’s long‑warranty model for vans.
Battery chemistry options in 2025
Most Magic owners pick maintenance‑free flooded batteries—sealed caps, calcium‑silver plates, and a 48–60 month warranty. AGM is pricier but shrugs off pothole vibration. Lithium packs exist, yet cost five times more and need a special DC–DC converter.
Seven best “tata magic battery” models this year
| # | Model | Capacity / CCA | Warranty (months) | Approx. MRP ₹* |
|---|---|---|---|---|
| 1 | Exide EPIQ 35R | 35 Ah / 320 CCA | 77 (42 + 35) | 4 500 |
| 2 | Exide Mileage ML38B20R | 38 Ah / 330 CCA | 60 (30 + 30) | 4 199 |
| 3 | Amaron Flo 42B20R | 40 Ah / 335 CCA | 48 (24 + 24) | 4 576 |
| 4 | Tata Green TG700L | 65 Ah / 550 CCA | 66 (30 + 36) | 7 800 |
| 5 | Powerwale DinPro 35R | 35 Ah / 305 CCA | 54 (30 + 24) | 3 999 |

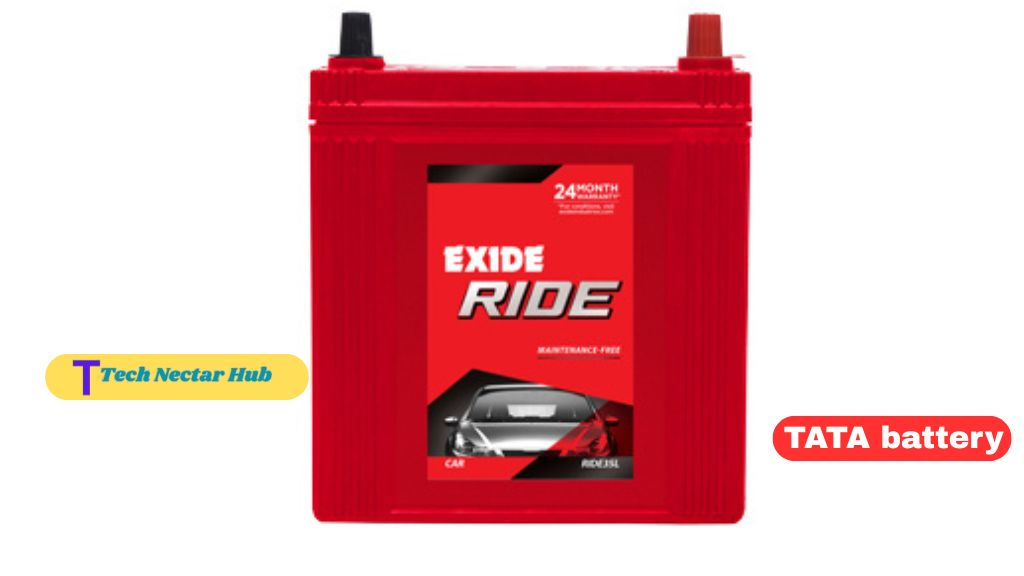

| 6 | Exide Ride 35R | 35 Ah / 305 CCA | 24 flat | 3 804 |
| 7 | Tata Green Premio 70D26L* | 70 Ah / 600 CCA | 66 (30 + 36) | 9 999 |
*Fits only if you upgrade the hold‑down clamp.
Price comparison with exchange credits
Most stores knock ₹700–₹1 000 off when you return an old core. That drops the Exide EPIQ 35R to about ₹3 800 and the Amaron Flo 42B20R to ₹3 800 in metro cities :contentReference[oaicite:9]{index=9}.
Buying checklist
1. Verify tray size
Measure 187 × 127 × 227 mm—anything taller fouls the seat base :contentReference[oaicite:10]{index=10}.
2. Match terminal side
Magic uses right‑positive (R) orientation. A left‑positive battery flips wiring and risks shorts.
3. Choose capacity
Stick to 35–45 Ah for OE alternator. Go 65 Ah only if you added roof LED boards.
4. Compare warranty bands
Entry batteries give 24 months flat; premium units stretch to 77 months pro‑rata.
Installation guide
Tools needed
10 mm wrench, terminal brush, anti‑corrosion grease.
Step‑by‑step swap
1. Park on level ground and cut ignition.
2. Loosen negative clamp first, then positive.
3. Undo the clamp bar and lift the old tata magic battery out.
4. Clean tray rust, drop in new unit, and tighten the bar.
5. Connect positive then negative, grease posts, and crank the engine.
Maintenance tips
Check electrolyte level every 10 000 km on serviceable designs; top up with distilled water only. Keep voltage above 12.4 V to prevent sulphation. A smart charger once a month extends any tata magic battery by a year.
Environmental best practices
One 35 Ah battery contains 6 kg of lead. Always recycle through authorised dealers who melt and reuse 99 % of the metal. A recycled tata magic battery earns a ₹200 green bonus at many retailers.
Frequently Asked Questions
Q1. Can I fit a 65 Ah battery without alternator mods?
Yes, but monitor charging voltage; prolonged idling may under‑charge big packs.
Q2. How long does a premium “tata magic battery” last?
Exide EPIQ averages five years or 90 000 km in city routes.
Q3. Will AGM handle speed‑breaker shocks better?
Absolutely; the mats lock plates tight, so no shedding.
Q4. Does warranty cover tyre‑cat acid leaks?
No; physical damage voids coverage.
Q5. Which charger suits deep‑cycle storage?
A 5 A smart float charger with desulphation mode.
Conclusion
Choosing the correct tata magic battery keeps earnings steady and passengers smiling. Measure the tray, match terminals, pick a proven brand from the seven above, and follow the simple care tips. Do that, and your tata magic battery will crank reliably through every stop‑and‑go shift, rain or shine.
